6~35KV Tape Armored MV Cable

Availability:

Quantity:



Inquire Add to Basket

OVERVIEW

SPECIFICATION

CONSTRUCTION

PARAMETER

Application

Medium voltage XLPE Insulation power cable is suitable for use in rated AC voltage 6~35kV system transmitting and distributing Iines

Depending on different protective layer ,it can be laid separately in air, cable tray, indoor wall bracket, cable box, direct burial underground , cable trenches, pipes and etc.

Standard：

IEC60502-2; IEC60228; IEC60332-1/2/3; BS6622; BS7835; DIN VDE 0276-620 ; AS/NZS 1429.1;GB/T12706；ICEA-S-66-524

Core number : 1core , 3 core

Armour : Aluminium tape (ATA） , Galvanized Steel tape (STA)

Long term operating temperature for cable conductor is 90℃

The ambient temperature for installation: ≥0℃

When cable in short-circuit ,Max conductor temperature is 250℃ with duration no longer than 5 seconds

Property of flame retardant, fire resistance, water proof , Low smoke halogen free can be chose.

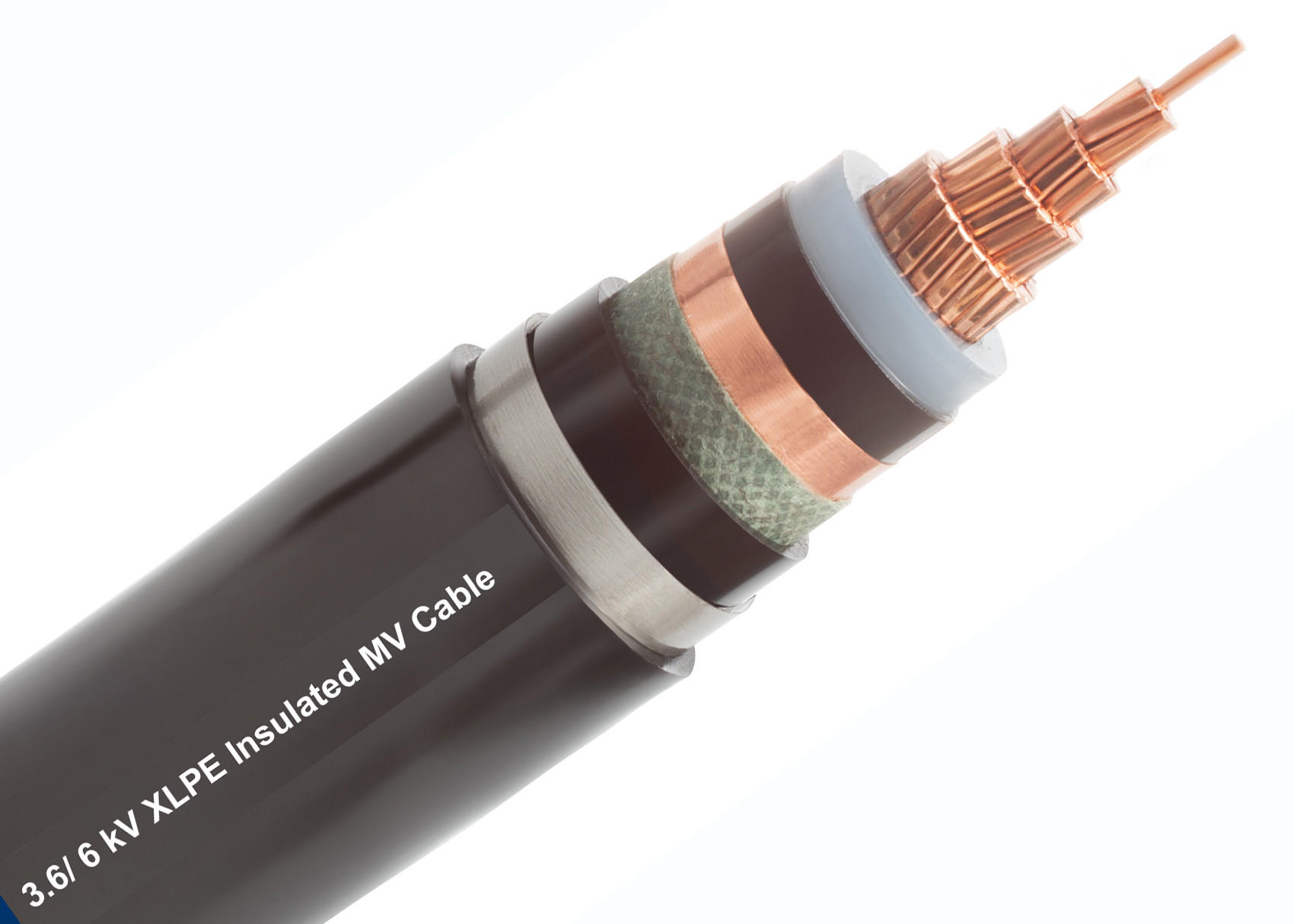

1. Conductor ( Copper, Aluminium)

2. Conductor screen

3. Insulation (XLPE, TR-XLPE)

4. Insulation screen

5. Copper screen ( Copper tape, Copper wire)

6. Filler

7. Wrapping tape

8. Tape armoured (Aluminium tape, steel tape)

9.Inner sheath (PVC, LSHF)

10.Wrapping tape

11.Outer sheath (PVC, PE,HDPE, LSHF)

Nominal. Section	Conductor dia.	Nominal. Insinuation thickness	Cable Approx. Overall dia. mm	Cable Approx. Weight. Kg/Km		Max. D.C. resistance at 20℃ Ω/KM
mm²	mm	mm	Three core	Three core		CU	AL
mm²	mm	mm	Three core	CU	AL	CU	AL
10	3.69	2.5	30.20	1783	1599	1.83	3.08
16	4.74	2.5	32.40	2085	1790	1.15	1.91
25	6.00	2.5	35.40	2532	2062	0.727	1.2
35	7.00	2.5	37.70	2976	2326	0.524	0.868
50	8.30	2.5	40.70	3519	2639	0.387	0.641
70	10.00	2.5	44.60	4381	3108	0.268	0.443
95	11.60	2.5	48.20	5361	3598	0.193	0.320
120	13.00	2.5	51.70	6333	4104	0.153	0.253
150	14.60	2.5	55.30	7376	4638	0.124	0.206
185	16.20	2.5	58.90	8678	5239	0.0991	0.164
240	18.40	2.6	64.50	10746	6233	0.0754	0.125
300	20.60	2.8	70.50	12969	7328	0.0601	0.100
400	23.50	3.0	78.20	16976	9727	0.0470	0.0778
500	26.6	3.2	87.00	21005	11683	0.0366	0.0605

Learn More

Nominal. Section	Conductor dia.	Nominal. Insinuation thickness	Cable Approx. Overall dia. mm	Cable Approx. Weight. Kg/Km		Max. D.C. resistance at 20℃ Ω/KM
mm²	mm	mm	Three core	Three core		CU	AL
mm²	mm	mm	Three core	CU	AL	CU	AL
16	4.74	3.4	40.69	2388	2093	1.15	1.91
25	6.00	3.4	43.46	2871	2401	0.727	1.2
35	7.00	3.4	49.04	3620	2971	0.524	0.868
50	8.30	3.4	52.05	4202	3322	0.387	0.641
70	10.00	3.4	53.07	4780	3507	0.268	0.443
95	11.60	3.4	56.73	5775	4013	0.193	0.320
120	13.00	3.4	60.15	6741	4511	0.153	0.253
150	14.60	3.4	63.38	7775	5037	0.124	0.206
185	16.20	3.4	68.02	8949	5510	0.0991	0.164
240	18.40	3.4	72.37	11172	6660	0.0754	0.125
300	20.60	3.4	77.29	13309	7669	0.0601	0.100
400	23.50	3.4	85.78	17162	9912	0.0470	0.0778
500	26.6	3.4	92.00	21065	11742	0.0366	0.0605

Nominal. Section	Conductor dia.	Nominal. Insinuation thickness	Cable Approx. Overall dia. mm	Cable Approx. Weight. Kg/Km		Max. D.C. resistance at 20℃ Ω/KM
mm²	mm	mm	Three core	Three core		CU	AL
mm²	mm	mm	Three core	CU	AL	CU	AL
25	6.00	4.5	48.62	3339	2869	0.727	1.2
35	7.00	4.5	51.59	3797	3147	0.524	0.868
50	8.30	4.5	54.80	4406	3526	0.387	0.641
70	10.00	4.5	58.02	5294	4021	0.268	0.443
95	11.60	4.5	62.08	6376	4613	0.193	0.320
120	13.00	4.5	65.50	7370	5141	0.153	0.253
150	14.60	4.5	68.73	8431	5693	0.124	0.206
185	16.20	4.5	72.37	9817	6378	0.0991	0.164
240	18.40	4.5	77.72	11906	7393	0.0754	0.125
300	20.60	4.5	83.84	14922	9282	0.0601	0.100
400	23.50	4.5	91.14	18054	10804	0.0470	0.0778
500	26.6	4.5	97.35	22019	12696	0.0366	0.0605

Nominal. Section	Conductor dia.	Nominal. Insinuation thickness	Cable Approx. Overall dia. mm	Cable Approx. Weight. Kg/Km		Max. D.C. resistance at 20℃ Ω/KM
mm²	mm	mm	Three core	Three core		CU	AL
mm²	mm	mm	Three core	CU	AL	CU	AL
25	6.00	5.5	53.94	3984	3514	0.727	1.2
35	7.00	5.5	56.51	4463	3813	0.524	0.868
50	8.30	5.5	59.72	5104	4224	0.387	0.641
70	10.00	5.5	62.94	6026	4753	0.268	0.443
95	11.60	5.5	66.80	7118	5356	0.193	0.320
120	13.00	5.5	70.22	8145	5916	0.153	0.253
150	14.60	5.5	73.45	9239	6501	0.124	0.206
185	16.20	5.5	77.29	10696	7257	0.0991	0.164
240	18.40	5.5	83.84	13685	9173	0.0754	0.125
300	20.60	5.5	88.56	15936	10295	0.0601	0.100
400	23.50	5.5	96.06	19171	11922	0.0470	0.0778
500	26.6	5.5	102.27	23217	13894	0.0366	0.0605

Nominal. Section	Conductor dia.	Nominal. Insinuation thickness	Cable Approx. Overall dia. mm	Cable Approx. Weight. Kg/Km		Max. D.C. resistance at 20℃ Ω/KM
mm²	mm	mm	Three core	Three core		CU	AL
mm²	mm	mm	Three core	CU	AL	CU	AL
25	6.00	8.0	65.94	5323	4853	0.727	1.2
35	7.00	8.0	68.51	5841	5191	0.524	0.868
50	8.30	8.0	71.72	6539	5659	0.387	0.641
70	10.00	8.0	75.14	7565	6292	0.268	0.443
95	11.60	8.0	78.80	8689	6926	0.193	0.320
120	13.00	8.0	83.62	10653	8424	0.153	0.253
150	14.60	8.0	86.85	11847	9109	0.124	0.206
185	16.20	8.0	90.49	13377	9938	0.0991	0.164
240	18.40	8.0	95.84	15665	11153	0.0754	0.125
300	20.60	8.0	100.56	18000	12360	0.0601	0.100
400	23.50	8.0	108.06	21366	14116	0.0470	0.0778
500	26.6	8.0	114.27	25544	16221	0.0366	0.0605

Nominal. Section	Conductor dia.	Nominal. Insinuation thickness	Cable Approx. Overall dia. mm	Cable Approx. Weight. Kg/Km		Max. D.C. resistance at 20℃ Ω/KM
mm²	mm	mm	Three core	Three core		CU	AL
mm²	mm	mm	Three core	CU	AL	CU	AL
25	6.00	10.5	77.94	6976	6506	0.727	1.2
35	7.00	10.5	81.91	8406	7757	0.524	0.868
50	8.30	10.5	84.92	9156	8276	0.387	0.641
70	10.00	10.5	88.34	10296	9023	0.268	0.443
95	11.60	10.5	92.00	11524	9761	0.193	0.320
120	13.00	10.5	95.62	12753	10523	0.153	0.253
150	14.60	10.5	99.05	14062	11324	0.124	0.206
185	16.20	10.5	102.49	15615	12176	0.0991	0.164
240	18.40	10.5	107.84	18005	13492	0.0754	0.125
300	20.60	10.5	112.56	20438	14798	0.0601	0.100
400	23.50	10.5	120.06	23935	16685	0.0470	0.0778
500	26.6	10.5	126.27	28263	18940	0.0366	0.0605
