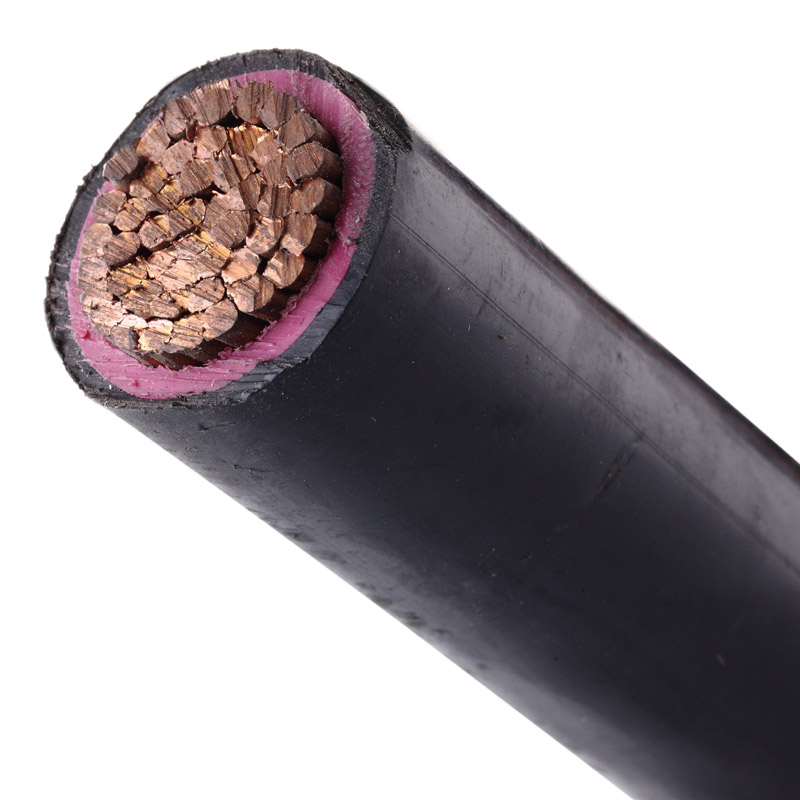

Low Voltage PVC Power Cable

Availability:

Quantity:



Inquire Add to Basket

OVERVIEW

SPECIFICATIONS

CONSTRUCTION

PRODUCT PROPERTIES

Application

PVC insulated Power cables are commonly used products in power systems,with sturdy structures.

They have characteristics of stable capability,advanced technology,broad material resources,low price,good flexible and easy to lay and maintain,and suitable to be laid for distribution line with A.C.50HZ and rated voltage 10kv and below.

Standard

IEC60502,other standards,GB,BS,VDE,AS/NZS,ICEA,JIS,allowed too.

CABLE TYPE	No.of cores	Nominal Section Area mm²
		Copper conductors	Aluminum conductors
PVC insulated PVC/PE sheathed power cable	1	1.5~630	2.5~630
	2	1.5~185	2.5~185
	3	1.5~300	2.5~300
	3+1	4~300
	4	4~185
	3+2	4~300
	5,4+1	4~185

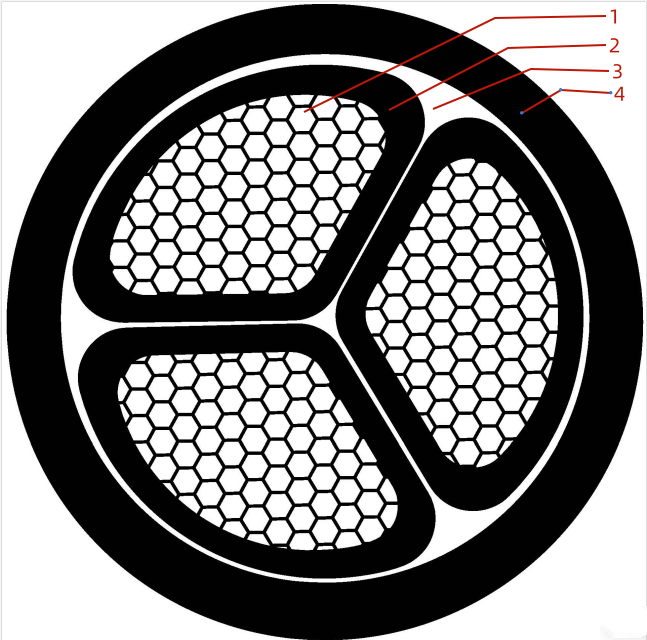

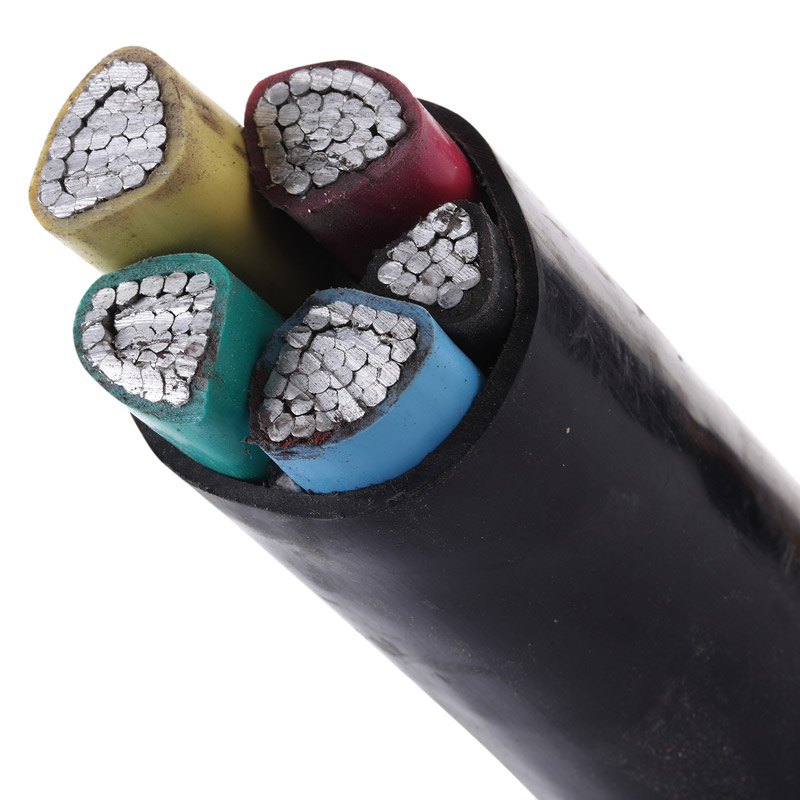

1. Conductor:Copper/Aluminium, Class 1, Class 2 and Class 5 as per IEC60228

2. Insulation:PVC

3. Fillers:Non-hygroscopic polypropylene(PP) yarn

4. Outer sheath:PVC

PVC insulated PVC sheathed power cable

Nominal Cross-Section Area （mm2）	Insulation Nominal Thick. (mm)	Sheath Nominal Thick. (mm)	Approx. Overall Dia. (mm)	Finished cable (kg/km)
Nominal Cross-Section Area （mm2）	Insulation Nominal Thick. (mm)	Sheath Nominal Thick. (mm)	Approx. Overall Dia. (mm)	Cu	AL
1X1.5	0.8	1.4	5.8	48	39
1X2.5	0.8	1.4	6.2	61	45
1X4	1.0	1.4	7.0	84	60
1X6	1.0	1.4	7.6	108	71
1X10	1.0	1.4	8.8	212	149
1X16	1.0	1.8	10.7	223	123
1X25	1.2	1.8	12.4	330	172
1X35	1.2	1.8	13.5	431	212
1X50	1.4	1.8	15.3	571	274
1X70	1.4	1.8	17.0	783	354
1X95	1.6	1.8	19.3	1069	474
1X120	1.6	1.8	20.9	1317	565
1X150	1.8	1.8	22.9	1614	690
1X185	2.0	1.8	25.1	2013	854
1X240	2.2	1.8	28.2	2615	1092
1X300	2.4	1.9	31.1	3256	1345
1X400	2.6	2.0	34.7	4123	1680
1X500	2.8	2.1	38.7	5302	2124
2X1.5	0.8	1.8	9.7	112	-
2X2.5	0.8	1.8	10.5	141	110
2X4	1.0	1.8	12.24	197	147
2X6	1.0	1.8	13.26	249	174
2X10	1.0	1.8	15.84	366	238
2X16	1.0	1.8	17.94	509	306
2X25	1.2	1.8	22	666	466
2X35	1.2	1.8	24.2	865	557
2X50	1.4	1.8	22.2	1145	584
2X70	1.4	1.9	25	1596	749
2X95	1.6	2.0	28.6	2142	986
2X120	1.6	2.1	31	2639	1181
2X150	1.8	2.2	34.2	3254	1454
2X185	2.0	2.4	37.8	4042	1782
2X240	2.2	2.5	39.51	5236	2237
2X300	2.4	2.7	43.74	6525	2762
3X1.5	0.8	1.8	10.16	137	-
3X2.5	0.8	1.8	11.02	176	129
3X4	1.0	1.8	12.89	251	176
3X6	1.0	1.8	13.99	324	210
3X10	1.0	1.8	16.77	481	291
3X16	1.0	1.8	19.03	680	379
3X25	1.2	1.8	23.3	955	511
3X35	1.2	1.8	25.7	1249	630
3X50	1.4	1.8	25.1	1788	823
3X70	1.4	1.9	28.2	2410	1056
3X95	1.6	2.1	32.2	3217	1410
3X120	1.6	2.2	35.2	3986	1702
3X150	1.8	2.3	39.4	4969	2105
3X185	2.0	2.5	43.6	6127	2589
3X240	2.2	2.7	48.8	7869	3276
3X300	2.4	2.9	53.2	9676	3960
4X4	1.0	1.8	13.8	300	201
4X6	1.0	1.8	14.9	399	251
4X10	1.0	1.8	17.6	621	365
4X16	1.0	1.8	20	914	497
4X25	1.2	1.8	22	1361	656
4X35	1.2	1.8	24.4	1766	810
4X50	1.4	1.9	28.4	2358	1071
4X70	1.4	2.0	31.6	3183	1378
4X95	1.6	2.2	36	4245	1837
4X120	1.6	2.3	39.3	5263	2218
4X150	1.8	2.5	43.9	6578	2760
4X185	2.0	2.6	48.5	8077	3360
5X1.5	0.8	1.8	11.79	196	-
5X2.5	0.8	1.8	12.87	259	180
5X4	1.0	1.8	15.22	378	252
5X6	1.0	1.8	16.59	495	306
5X10	1.0	1.8	20.08	748	431
5X16	1.0	1.8	22.91	1073	571
5X25	1.2	1.8	24.19	1533	753
5X35	1.2	1.9	26.81	2030	947
5X50	1.4	2.1	30.95	2736	1270
5X70	1.4	2.2	34.98	3838	1681
5X95	1.6	2.4	40.47	5185	2246
5X120	1.6	2.5	44.00	6400	2694
5X150	1.8	2.6	48.54	7868	3294
5X185	2.0	2.8	54.04	9814	4091
5X240	2.2	3.1	61.16	12797	5275
5X300	2.4	3.3	67.69	15974	6510

Nominal Cross-Section Area(mm2)	Insulation Nominal Thick. (mm)		Sheath Nominal Thick.(mm)	Approx. Overall Dia.(mm)	Finished cable (kg/km)
Nominal Cross-Section Area(mm2)	Phase core	Neutral core	Sheath Nominal Thick.(mm)	Approx. Overall Dia.(mm)	Cu	AL
3X2.5+1X1.5	0.8	0.8	1.8	11.66	203	-
3X4 +1X2.5	1.0	0.8	1.8	13.47	287	196
3X6 +1X 4	1.0	1.0	1.8	14.92	383	244
3X10 +1X 6	1.0	1.0	1.8	17.57	558	330
3X16+1X 10	1.0	1.0	1.8	20.25	804	440
3X25 +1X 16	1.2	1.0	1.8	21.38	1139	570
3X35 +1X 16	1.2	1.0	1.8	23.01	1435	685
3X50 +1X 25	1.4	1.2	1.9	26.3	1953	917
3X70 +1X 35	1.4	1.2	2.0	29.63	2718	1207
3X95 +1X 50	1.6	1.4	2.2	34.27	3672	1615
3X120 +1X 70	1.6	1.4	2.3	37.55	4631	1974
3X150 +1X 70	1.8	1.4	2.4	40.76	5514	2336
3X185 +1X 95	2.0	1.6	2.6	45.67	6957	2933
3X240 +1X 120	2.2	1.6	2.8	51.26	8990	3733
3X300 +1X 150	2.4	1.8	2.9	56.54	11162	4581
4X2.5+1X1.5	0.8	0.8	1.8	12.65	243	-
4X4 +1X2.5	1.0	0.8	1.8	14.75	348	232
4X6 +1X 4	1.0	1.0	1.8	16.32	465	289
4X10 +1X 6	1.0	1.0	1.8	19.38	686	396
4X16+1X 10	1.0	1.0	1.8	22.34	992	528
4X25 +1X 16	1.2	1.0	1.8	23.71	1436	711
4X35 +1X 16	1.2	1.0	1.8	25.63	1835	868
4X50 +1X 25	1.4	1.2	2.0	29.56	2505	1176
4X70 +1X 35	1.4	1.2	2.1	33.33	3492	1550
4X95 +1X 50	1.6	1.4	2.3	38.56	4719	2074
4X120 +1X 70	1.6	1.4	2.4	42.2	5925	2526
4X150 +1X 70	1.8	1.4	2.6	46.15	7120	3028
4X185 +1X 95	2.0	1.6	2.8	51.64	8962	3793
4X240 +1X 120	2.2	1.6	3.0	58	11595	4832
4X300 +1X 150	2.4	1.8	3.2	64.19	14430	5962

The long-time permissible working temperature of cable conductive core is not more than 70℃.

During short circuit(max.lasting time is not more than 5 seconds),the max.temperature of cable conductor is not more than 165℃.

The difference level of laying cable is not restricted.When laying the cable,ambient temperature is not lower than 0℃.

They have good chemical stability,and properties of acid resistance,alkali resistance,salt resistance,oil resistance,solvent resistance and flame resistance.

Light weight,good bending property and easy installation and maintenance.
