Application
These cables are developed according to PV1-F and H1Z2Z2-K requirements and designed to meet the rigors of the outdoor application environment and provide long term durability and flexibility, combined with ease of installation
Twin core solar cables provide a durable, high performance interconnection solution between photovoltaic (PV) panels and from the panels to the inverter. Constructed using fine stranded tinned copper conductors insulated with a temperature resistant, halogen-free cross-linked co-polymer compound and protected by an outer sheath of flame-retardant, abrasion and UV-resistant, halogen-free cross-linked co-polymer
Standard
EN50618, UL4703
Nominal Voltage: PV1-F: DC 1.0KV AC 0.6/1.0KV
H1Z2Z2-K: DC 1.5KV AC 1.0/1.0KV
Ambient Temperature: -40℃~+90℃
Max.Temperature at conductor: +120℃
Service life: ＞25 years ( -40℃~+90℃)
Withstand voltage(V/5min): AC6500
Min bending radius(mm) : 4*D

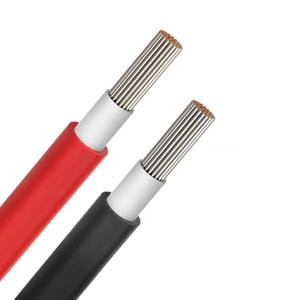

1. class 5 tinned copper conductor
2. insulation
3. sheath
Number and nominal sectional area of conductors | Thickness of insulation | Thickness of sheath | Maximum resistance of conductor at 20℃ | Current carrying capacity |
mm2 | mm | mm | Ω/km | A |
2x1.5 | 0.7 | 0.8 | 13.7 | 30 |
2x2.5 | 0.7 | 0.8 | 8.21 | 41 |
2x4 | 0.7 | 0.8 | 5.09 | 55 |
2x6 | 0.7 | 0.8 | 3.39 | 70 |
2x10 | 0.7 | 0.8 | 1.95 | 98 |
2x16 | 0.7 | 0.9 | 1.24 | 132 |
2x25 | 0.9 | 1.0 | 0.795 | 176 |
2x35 | 0.9 | 1.1 | 0.565 | 218 |
2x50 | 1.0 | 1.2 | 0.393 | 276 |
2x70 | 1.1 | 1.2 | 0.277 | 347 |
2x95 | 1.1 | 1.3 | 0.210 | 416 |
2x120 | 1.2 | 1.3 | 0.164 | 488 |
2x150 | 1.4 | 1.4 | 0.132 | 566 |
2x185 | 1.6 | 1.6 | 0.108 | 644 |
2x240 | 1.7 | 1.7 | 0.817 | 775 |
