Sizing a medium voltage cable is one of the most critical tasks in electrical engineering. It isn't just about picking a wire that fits into a lug. If you get the size wrong, you risk catastrophic insulation failure, expensive downtime, or even dangerous electrical fires. In systems ranging from 2kV to 35kV, the physics of electricity changes. You have to account for more than just simple resistance; you must deal with electric field stress, thermal dissipation, and short-circuit forces.
This guide simplifies the complex process of selecting the right medium voltage cable for your infrastructure. Whether you are installing a 3 core armored line for industrial power or a Single core layout for a utility substation, the principles remain the same. We will walk through the technical requirements, environmental factors, and safety standards that ensure your system runs cool and remains stable for decades.

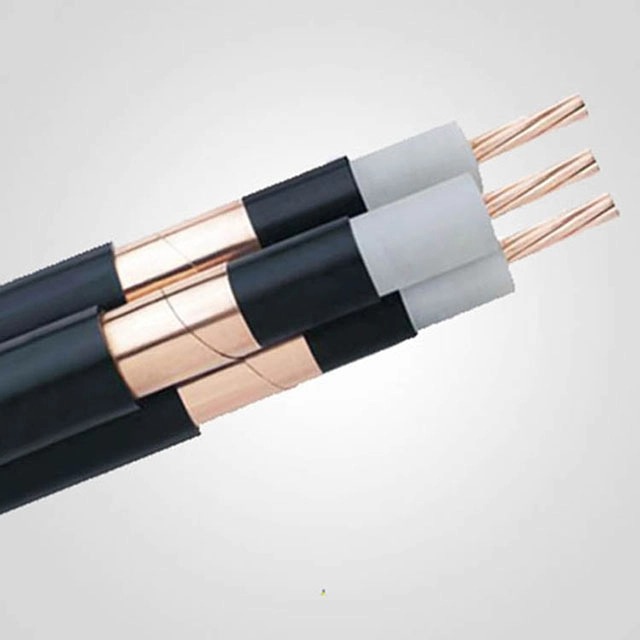

Before calculating sizes, you must understand what you are sizing. A medium voltage cable is a complex sandwich of layers designed to contain high levels of electrical stress. The conductor at the center—whether it is a Copper conductor or an Aluminum conductor—is only the beginning.
The insulation system usually consists of Cross-Linked Polyethylene (XLPE) or Ethylene Propylene Rubber (EPR). Surrounding this are semi-conductive screens and a metallic shield. These layers ensure the electric field is uniform. If you choose a 3 core configuration, these layers are bundled together, often with steel wire armor for protection. If you use a Single core design, it offers more Flexible installation options but requires careful grounding of the shields to prevent circulating currents.
The primary goal of sizing is to ensure the medium voltage cable can carry the required load without overheating. This is known as ampacity. It isn't a fixed number found in a single table; it depends heavily on how the cable is installed.
Heat is the enemy of insulation. If a medium voltage cable is buried directly in the ground, the soil acts as an insulator, trapping heat. We use "derating factors" to adjust the allowable current. For instance, if you cluster several cables in one duct, they heat each other up. You must then increase the conductor size to compensate for this thermal interference.

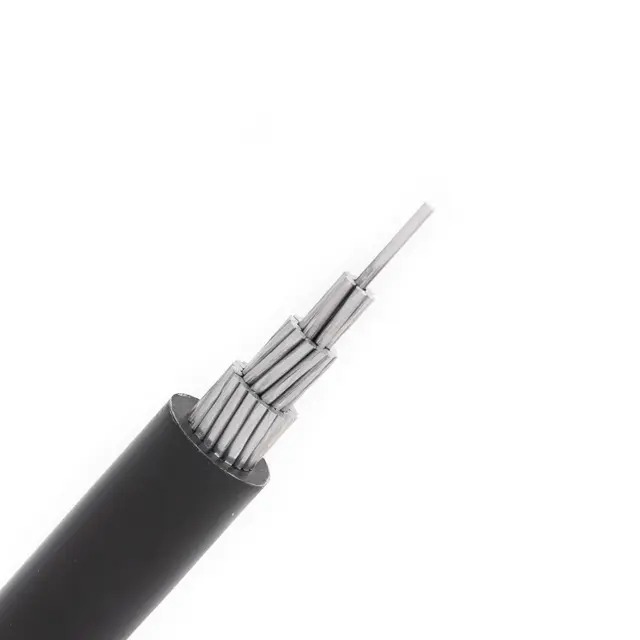

Choosing between a Copper conductor and an Aluminum conductor significantly impacts your sizing results. Copper has better conductivity, meaning you can use a smaller physical diameter for the same current. However, aluminum is lighter and more cost-effective for long-distance runs. You must weigh the higher cost of copper against the easier installation of a more Flexible aluminum wire.
A medium voltage cable might handle 400 Amps during normal operation, but during a fault, it could face 20,000 Amps for a fraction of a second. Sizing must account for this sudden surge of energy.
During a short circuit, the temperature of the medium voltage cable spikes instantly. The XLPE insulation can typically handle up to 250°C during a fault before it begins to degrade permanently. We use specific formulas (like the Onderdonk equation) to ensure the conductor cross-section is large enough to absorb this heat without melting the surrounding layers.
In a 3 core cable, the magnetic fields generated during a fault try to push the conductors apart. The cable structure must be strong enough to withstand these mechanical "bursting" forces. If your system has high fault levels, you might need a larger Copper conductor simply for its physical strength and thermal mass, even if the daily load is low.
Voltage drop is a common headache in large industrial plants or renewable energy farms. If the medium voltage cable is too long, the resistance and reactance of the wire will "eat" part of the voltage. By the time the power reaches the motor or transformer, the voltage might be too low for the equipment to start.
In medium voltage systems, we don't just look at DC resistance. We must calculate the "impedance," which includes inductive reactance. This is especially true for a Single core medium voltage cable spaced far apart, as the inductance increases.
If your calculation shows a voltage drop higher than 3%, you have two choices:
Increase the conductor size (e.g., moving from 95mm² to 120mm²).
Use a 3 core design to keep the conductors closer together, which reduces inductance.
Where you put the cable is just as important as how much power it carries. The environment dictates the "outer skin" or jacket of the medium voltage cable.
In many underground applications, water ingress is a major cause of "treeing" in insulation, which leads to failure. Choosing a Waterproof jacket, often featuring a swellable tape or a lead sheath, is vital for longevity. If the trench is prone to flooding, a standard jacket will not suffice; you need a specialized medium voltage cable designed for permanent submersion.
For indoor installations, tunnels, or high-occupancy buildings, safety codes require a Flame retardant jacket. These materials are designed not to spread fire along the cable run and to emit low smoke. Using a Flame retardant medium voltage cable ensures that in the event of an electrical fault, the cable doesn't become a "fuse" that carries the fire to other rooms.
To truly master sizing, you need a repeatable process. This section breaks down the engineering workflow used by professionals to select a medium voltage cable.
First, gather your "knowns." You need the system voltage (e.g., 11kV or 33kV), the peak load in kVA, and the protective device's trip time. You also need to know the "Short Circuit Level" of the utility grid. Without these numbers, any sizing attempt is just a guess.
Look at your installation route. Is the medium voltage cable in a tray? Is it in a duct? What is the ambient air or soil temperature? We apply multipliers (derating factors) to the base ampacity tables. For example, if the soil temperature is 35°C instead of the standard 20°C, your medium voltage cable can carry significantly less current.
The physical layout of your medium voltage cable changes how it behaves electrically and thermally.
A 3 core cable is often easier to install because it is a single unit. It usually features steel wire armor (SWA), making it very rugged. Because the three phases are bundled together, the magnetic fields largely cancel out, which minimizes interference with nearby communication lines. It is the "go-to" for direct burial in industrial sites.
Single core cables are much easier to handle in tight spaces because they are more Flexible. They allow for much higher current ratings because each conductor can dissipate heat more effectively. However, you must be careful with the metallic shields. If you ground both ends of a Single core medium voltage cable, the magnetic field will induce a current in the shield, causing extra heat. Professional sizing often involves "Single-point grounding" or "Cross-bonding" to prevent this.
Once you have your calculated size, you must verify it against the manufacturer's data sheets. Not all cables are created equal. One manufacturer’s Copper conductor might have slightly different insulation thickness than another's.
Ensure the medium voltage cable meets international standards like IEC 60502 or IEEE 399. These standards dictate everything from the thickness of the Flame retardant jacket to the purity of the Aluminum conductor.
Always consider future expansion. It is often much cheaper to install a slightly larger medium voltage cable now than to dig up a trench and add a second line five years from now. Adding a 20% "safety margin" to your load calculations is a standard industry practice that saves money in the long run.
Sizing a medium voltage cable requires a balance of thermal, electrical, and mechanical considerations. By focusing on the load requirements, short-circuit withstand, and the specific installation environment, you ensure a safe and efficient power system. Remember to always prioritize high-quality components, whether it is a 3 core armored cable or a Flexible Single core lead, to guarantee the integrity of your medium-voltage infrastructure.
Q: Can I use an Aluminum conductor instead of Copper for all MV applications?A: Generally, yes, but you will need a larger diameter cable to carry the same current. This might require larger conduits and lugs.
Q: Why is a Flame retardant jacket necessary for medium voltage?A: MV cables carry high energy. If a fault occurs, a Flame retardant jacket prevents the cable from acting as a fuel source, which is critical in confined spaces like mines or basements.
Q: Does a Waterproof cable really last longer?A: Yes. Moisture is the leading cause of insulation degradation (water treeing) in medium voltage cable. A Waterproof barrier significantly extends the service life of buried lines.
