In the rapidly expanding world of renewable energy, solar farms are growing larger and more efficient. As these Photo-Voltaic (PV) power plants scale up, the electrical infrastructure must keep pace. One critical component often overlooked by outsiders but vital to engineers is the medium voltage cable. It acts as the backbone of power distribution within a utility-scale solar project.
While low-voltage cables handle the immediate output from solar panels, the MV cable steps in to transport massive amounts of energy across vast distances to the grid. Understanding its structure, its specific role in a PV environment, and how to choose between a Copper conductor or an Aluminum conductor is essential for any developer. This guide explores the technical insights and practical applications of medium voltage cable technology in modern solar power plants.
To understand its role, we must first define what a medium voltage cable actually is. In the context of international standards like IEC or IEEE, "Medium Voltage" typically covers a range from 1kV up to 35kV. In a PV power plant, it is the bridge between the inverter stations and the main substation.

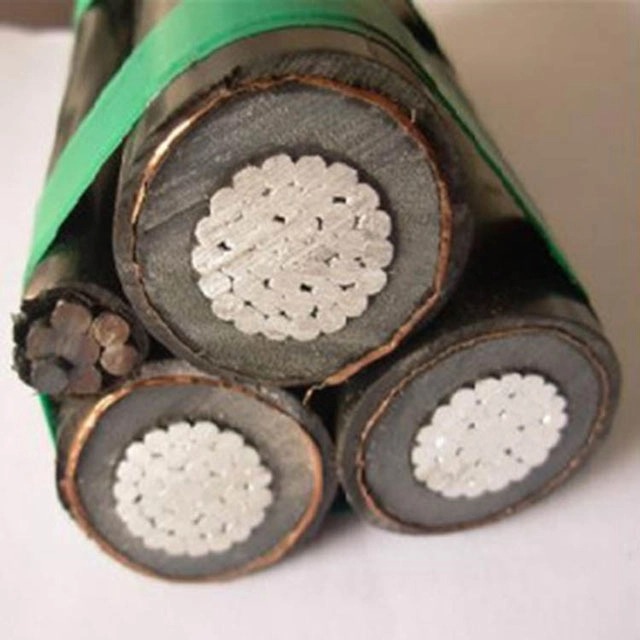

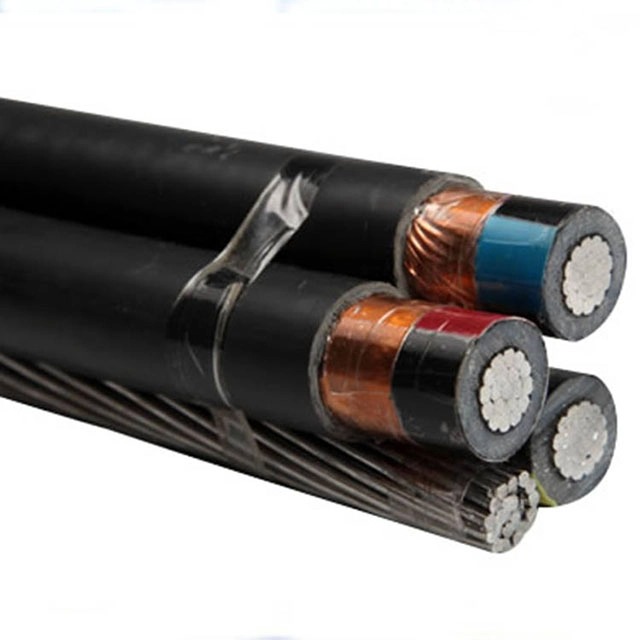

Unlike standard household wiring, an MV cable is a complex multi-layered beast. It includes a conductor, a semi-conducting shield, insulation (usually XLPE), an insulation shield, a metallic screen, and an outer jacket. These layers work together to contain the electrical field and protect the core from environmental stress. For solar farms, we often see the use of Single core or 3 core configurations depending on the trenching space and the specific design of the AC collection system. Because PV plants are often in harsh, open environments, these cables must be Waterproof to prevent "water treeing" in the insulation, which can lead to premature failure.
Solar panels generate Direct Current (DC) at a relatively low voltage. Inverters then convert this to Alternating Current (AC). However, transporting low-voltage AC over kilometers would result in massive energy losses due to resistance. This is where the medium voltage cable becomes the hero of the project.
By stepping up the voltage using a transformer at the inverter station, we can reduce the current (I) for the same amount of power (P). Reducing the current significantly slashes the power lost as heat. This allows us to use more efficient Aluminum conductor options or smaller diameter cables to move power to the central substation.
Using a medium voltage cable network instead of massive bundles of low-voltage wires saves money on raw materials and labor. It is much easier to bury a few 3 core medium voltage cable lines than dozens of thick low-voltage ones. Furthermore, modern Flexible designs allow these cables to be laid more quickly around the varying terrain often found in desert or mountainous solar sites.
When ordering a medium voltage cable for a PV project, the most debated topic is the conductor material. Both Copper conductor and Aluminum conductor have their place, but the choice depends on the project's budget and technical constraints.
| Feature | Copper conductor | Aluminum conductor |
| Conductivity | High (100% IACS) | Moderate (61% IACS) |
| Weight | Heavy | Light (approx. 30% of Copper) |
| Cost | Higher | Lower |
| Flexibility | Very Flexible | Less Flexible (stiffer) |
| Corrosion Resistance | Excellent | Good (requires proper termination) |
For most utility-scale PV plants, the Aluminum conductor is the preferred choice for medium voltage cable runs. It is lighter and much cheaper. Since solar farms usually have plenty of space for slightly thicker aluminum cables, the weight and cost savings are too good to pass up. However, in smaller sites or areas with tight bending requirements, a Copper conductor might be used because it is more Flexible and carries more current in a smaller diameter.
The harsh conditions of a solar farm—ranging from scorching heat to damp soil—require a medium voltage cable with specific protections. Each layer of the cable must perform a specific duty to ensure the plant stays online for 25+ years.
The Conductor: As discussed, this is the heart of the cable.
XLPE Insulation: Cross-linked polyethylene is the standard. It handles high temperatures and provides excellent dielectric strength.
Metallic Screen: Usually made of copper tapes or wires, it drains away leakage current and provides a path for fault currents.
Waterproof Layer: Many solar sites are prone to flooding or high water tables. A Waterproof tape or swellable powder is added to prevent moisture from traveling down the cable.
Outer Sheath: This is often made of HDPE or PVC. In some cases, it must be Flame retardant if the cable enters a building or high-risk area.
How the cable is physically built affects how it is installed. In PV power plants, we typically choose between Single core and 3 core medium voltage cable layouts.
These are individual cables for each phase. They are much easier to handle and are more Flexible. Engineers often prefer Single core for long runs because they are lighter and can be spaced out to dissipate heat better. However, they can induce circulating currents in the metallic screen, which requires careful grounding.
A 3 core medium voltage cable combines all three phases into one large jacket. This is common for shorter runs or when trench space is limited. They are armored more frequently to protect against mechanical damage from rocks or rodents. While they are heavier and harder to bend, they simplify the installation process because you only lay one cable instead of three.
PV plants aren't just about sun; they are about durability. The medium voltage cable must survive "Type Tests" to prove it can handle the environment.
In the event of an electrical fault, we don't want the cable to become a fuse that burns down the whole farm. Using a Flame retardant jacket ensures that if a fire starts, it won't spread along the cable trench. This is a critical safety feature for the B2B sector where insurance and risk management are top priorities.
Since these cables are often buried directly or placed in conduits, they face soil chemicals and moisture. A high-quality Waterproof design is non-negotiable. Without it, the "water trees" mentioned earlier will slowly degrade the XLPE insulation, leading to a catastrophic blowout that could take a large section of the solar farm offline.
Installing a medium voltage cable is a precise science. You cannot simply throw it in a hole and cover it up.
The trench must be free of sharp rocks that could puncture the jacket. A bed of sand usually cushions the medium voltage cable. If the design uses Aluminum conductor types, installers must be extra careful with the bending radius, as aluminum can kink or stress more easily than copper.
Before the PV plant goes live, every medium voltage cable run undergoes "VLF" (Very Low Frequency) testing. This checks for any damage that might have happened during shipping or installation. It ensures the Waterproof integrity and the insulation are perfect.
A solar farm is a long-term investment. The medium voltage cable network is expected to last as long as the panels.
Advanced plants use "Partial Discharge" monitoring. This detects tiny sparks inside the insulation of the medium voltage cable before it fails. By catching these early, operators can replace a section during a planned outage rather than dealing with an emergency.
In regions with shifting soils or seismic activity, using a Flexible medium voltage cable prevents the conductor from snapping under mechanical tension. Choosing the right "Class" of conductor—Class 2 for rigid or Class 5 for highly Flexible—is a key engineering decision.
The medium voltage cable is the unsung hero of the solar industry. Whether it is a Single core Copper conductor cable used for a tight connection or a massive Aluminum conductor 3 core run for a desert utility site, these components define the efficiency of the plant. By selecting cables that are Waterproof, Flame retardant, and appropriately Flexible, developers ensure their PV power plants remain productive for decades.
Q1: Why is an Aluminum conductor more common than copper in PV plants?
Aluminum is significantly cheaper and lighter. For the long distances required in solar farms, the cost savings on medium voltage cable outweigh the slightly larger diameter required for aluminum.
Q2: Can I use a regular power cable instead of a specialized MV cable?
No. High-voltage stress requires specialized layers like the semi-conductive shields and XLPE insulation found only in a proper medium voltage cable.
Q3: Is a 3 core cable better than a Single core for solar farms?
It depends on the trench. 3 core is great for space-saving, but Single core is more Flexible and easier to install over very long distances.
