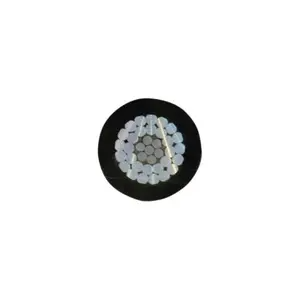

Have you ever looked at a cross-section of a medium voltage cable and wondered why it looks like a high-tech layer cake? Unlike the simple wires in your home walls, these industrial power lines are incredibly complex. They handle anywhere from 6kV to 35kV, and at these levels, electricity behaves less like water in a pipe and more like a high-pressure force trying to escape its cage.
Understanding the "complexity" of a medium voltage cable is vital for engineers, project managers, and procurement specialists. If one layer fails, the entire power grid can go dark. It isn't just about carrying current; it is about managing intense electrical stress, heat, and environmental moisture. In this guide, we will peel back the layers to see why every millimetre of a copper conductor or a 3 core assembly is engineered for survival.
The primary reason a medium voltage cable is complicated involves "electrical stress control." At low voltages, insulation just needs to be thick enough to stop a spark. At medium voltages, the electric field becomes uneven. Without specific layers, the voltage would concentrate at certain points, shredding the insulation from the inside out.
To fix this, manufacturers use semi-conductive screens. These layers smooth out the electrical field. Imagine trying to wrap a jagged rock in silk; the silk will tear. The semi-con layers act like a buffer, making the "rock" (the conductor) appear perfectly smooth to the delicate insulation. This ensures the medium voltage cable lives its full 30-year lifespan without internal "treeing" or electrical discharge.
The heart of any medium voltage cable is the metal that carries the load. This is usually a high-purity copper conductor or an aluminum conductor. The choice between them adds a layer of complexity to project planning. They aren't just interchangeable; they change the physical footprint of your installation.
Copper conductor options are favored for their superior conductivity. They are more flexible than aluminum, which makes them easier to pull through tight bends in underground ducts. Because copper carries more current for its size, the overall cable diameter is smaller. This saves space in crowded trenches.
An aluminum conductor is much lighter and significantly cheaper. However, because aluminum is less conductive, you need a larger cross-section to carry the same power as copper. This makes the medium voltage cable bulkier. Engineers must weigh the lower material cost against the higher cost of larger conduits and more difficult handling.
| Feature | Copper Conductor | Aluminum Conductor |
| Conductivity | High (100%) | Moderate (~61%) |
| Weight | Heavy | Very Light |
| Flexibility | High (Flexible) | Stiff |
| Cost | Higher | Lower |
When you order a medium voltage cable, you must decide on the physical configuration. This usually comes down to a single core or a 3 core setup. This decision affects everything from electromagnetic interference to the ease of installation.

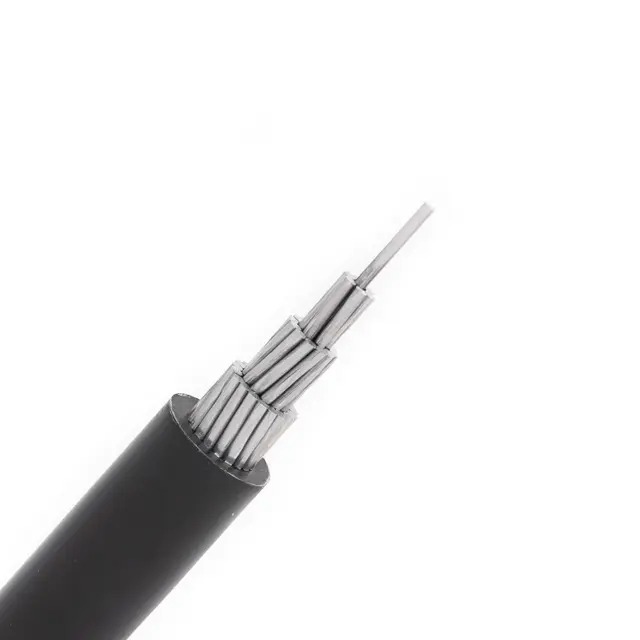

A single core cable is easier to handle because it is thinner and more flexible. It is the standard for long-distance transmissions where heat dissipation is a priority. Since the phases are separated, they don't heat each other up as much. However, they can induce currents in nearby metal structures, which requires careful grounding.
A 3 core medium voltage cable bundles all three phases of an AC system into one jacket. It is a "complete" solution. It reduces the total amount of armor and jacketing needed for a three-phase circuit. In industrial plants, a 3 core cable is often preferred because it prevents the electromagnetic issues seen with single cores.
If the insulation is the "skin," the metallic shield and armor are the "skeleton" and "armor plating." This is where a medium voltage cable gets its mechanical strength. It has to withstand being buried under tons of earth or pulled through rough concrete pipes.
Every medium voltage cable needs a metallic screen (usually copper tape or wires). It does two jobs. First, it carries fault current to the ground if the cable is damaged. Second, it keeps the electric field contained. Without it, you could get a shock just by standing near a live, unshielded cable.
For cables buried directly in the ground, we add steel wire armor (SWA) or steel tape armor (STA). This protects against shovels, rocks, and even rodents. If the cable is a single core, we use aluminum armor instead of steel to prevent the cable from heating up due to magnetic fields.
A medium voltage cable doesn't just sit in a clean, dry room. It lives in flooded trenches, chemical plants, or near high-heat furnaces. This requires specialized outer "jackets" that add to the complexity of the build.
Water is the enemy of high voltage. If moisture enters the insulation, it creates "water trees" that eventually lead to a short circuit. High-quality medium voltage cable uses a waterproof layer, often including swellable tapes that expand to block water if the outer jacket is cut.
In tunnels or buildings, a flame retardant jacket is mandatory. If a fire starts, you don't want the cable to act like a fuse, carrying the flames from one room to another. These flame retardant materials are engineered to self-extinguish and emit low smoke, protecting both the infrastructure and human life.
Insulation is the most critical part of the medium voltage cable complexity. It must be a perfect barrier against high voltage while remaining flexible and heat-resistant.
Cross-linked Polyethylene (XLPE) is the industry standard. It is incredibly tough and can handle high temperatures (up to 90°C normally). Its "complicated" nature comes from the curing process, where chemical bonds are created to make the plastic much stronger. It is the go-to for 3 core underground power lines.
Ethylene Propylene Rubber (EPR) is the choice when you need a flexible medium voltage cable. It is more expensive than XLPE but handles tight bends and vibrations much better. You will often see EPR in mining or marine environments where the cable moves frequently. It also has better resistance to "partial discharge," making it a robust, albeit pricier, option.
You cannot treat a medium voltage cable like a garden hose. Because of the layers of copper conductor, semi-con, and armor, it has a "minimum bending radius." If you bend it too sharply, you crack the insulation or the semi-con layers.
This is why "cable pulling" is a professional science. It requires specialized rollers, winches, and lubricants. If an installer forces a 3 core cable around a corner that is too tight, they might create microscopic cracks. These cracks won't cause a failure today, but in five years, they will lead to a massive blowout. The complexity of the cable's physical build dictates the complexity of the labor required to install it.
The complexity of a medium voltage cable continues long after it is buried. Because you cannot see inside the jacket, we use advanced "Non-Destructive Testing" (NDT) to check its health.
VLF Testing: Very Low Frequency testing "stresses" the cable to find weak spots before they fail.
Partial Discharge (PD) Sensing: We listen for tiny electrical sparks inside the insulation.
Tan Delta: This measures the "cleanliness" of the insulation.
These tests are necessary because a medium voltage cable is a chemical and electrical system that ages. Heat, moisture, and electrical stress slowly change the molecular structure of the insulation. By understanding these tests, B2B buyers can predict when to replace a copper conductor line before a catastrophic failure occurs.
So, why is medium voltage cable so complicated? Because it has to perform a miracle every second. It holds back massive amounts of energy while sitting in wet, hot, or dangerous environments. From the choice of a single core aluminum conductor to the addition of flame retardant jackets, every layer has a job.
When you choose the right cable, you aren't just buying wire; you are buying a complex, engineered system designed for reliability. Whether you need a flexible EPR cable or a rugged 3 core XLPE line, understanding these complexities ensures your project stays powered for decades.
Q1: Can I use a low voltage cable for medium voltage applications?
Absolutely not. Low voltage cables lack the semi-conductive screens and high-grade insulation needed to manage the electrical stress of a medium voltage cable. It would fail almost instantly.
Q2: Which is better for a waterproof installation, copper or aluminum?
Both can be waterproof if designed with the right jacket and swelling tapes. However, a copper conductor is often preferred in wet environments because it resists corrosion better than aluminum if water happens to breach the outer layer.
Q3: Does a flame retardant cable also mean it is heat resistant?
Not necessarily. Flame retardant means the cable won't spread fire. Heat resistant means it can operate at high temperatures. Always check the specific temperature rating of your medium voltage cable.
