Choosing between plastic and rubber insulation for electrical projects is more than a simple preference. It is a critical safety and performance decision. Most people recognize PVC (plastic) as the standard for home wiring, but industrial environments often demand the ruggedness of a Rubber Cable. Each material has a specific molecular structure that dictates how it handles heat, moisture, and physical stress.
In this guide, we break down the technical and practical differences between these two giants of the wire and cable industry. We will look at why a Heavy duty Rubber Cable might be your best bet for a construction site, while plastic remains the king of cost-effective indoor installations. By the time you finish reading, you will know exactly which material fits your specific application.
At its core, the primary difference lies in the polymer used for insulation. Plastic cables usually utilize Thermoplastics like Polyvinyl Chloride (PVC) or Polyethylene (PE). These materials soften when heated and harden when cooled. They are excellent for static environments where the cable stays in one place for decades.
A Rubber Cable, however, is typically made from Thermosetting polymers like Ethylene Propylene Rubber (EPR) or Polychloroprene (PCP). These materials undergo a chemical change during manufacturing called "vulcanization." This process creates cross-links between polymer chains. Once it sets, it does not melt. This makes it a High temperature silicone or EPR powerhouse that maintains its shape and insulating properties under extreme thermal stress. It stays flexible in freezing temperatures where plastic would crack like glass.
If your project involves constant movement, plastic is rarely the answer. Plastic has a "memory." If you bend it, it wants to stay bent or, worse, the insulation might thin out at the stress point. For portable tools and moving machinery, an industrial Rubber Cable is the gold standard.
Heavy duty environments involve abrasion, impact, and constant reeling. Rubber's natural elasticity allows it to absorb shocks.
Crush Resistance: Rubber can be stepped on or run over by light machinery without immediate failure of the internal core.
Bend Radius: It allows for a much tighter bend radius compared to PVC.
Torsion Support: It handles twisting forces, which is why it is used in wind turbines and robotic arms.
A Multicore Rubber Cable is often designed with internal fillers that allow the conductors to slide slightly against each other as the cable flexes, preventing internal wire breakage.
Temperature is the ultimate test for any cable insulation. Plastic (PVC) generally has an operating range up to 70∘C or 90∘C. Beyond this, the plastic starts to soften, which can lead to "decentralization"—where the copper conductor literally sinks through the insulation, causing a short circuit.
When you deal with furnaces, engine rooms, or intensive lighting rigs, you need a High temperature silicone Rubber Cable. These can often withstand temperatures exceeding 180∘C or even 200∘C without losing electrical integrity.
Cold Resistance: While PVC becomes brittle at −10∘C, rubber remains supple at −40∘C.
Thermal Cycling: Rubber handles the expansion and contraction of the copper conductor much better than rigid plastic does.
In many industrial settings, cables aren't just sitting in a dry tray. They face oils, acids, and constant moisture. Here, the choice of Rubber Cable is vital for long-term survival.
While PVC is decent at shedding water, it is not always the best for long-term immersion or high-pressure washdowns. A Waterproof Rubber Cable with a Chlorinated Polyethylene (CPE) jacket provides superior protection. It creates a hermetic seal that prevents "wicking," where water travels up the inside of the cable.
If you are wiring a submersible pump or a chemical processing plant, the chemical inertness of rubber prevents the jacket from swelling or becoming "gummy" over time.
Safety is non-negotiable. Both materials can be engineered for safety, but they react differently to fire. Plastic cables, unless specifically modified, can release thick black smoke and toxic hydrogen chloride gas when they burn.
Many modern Rubber Cable options are inherently Flame retardant. Because they are thermoset, they don't drip flaming molten plastic, which can spread fire to floors below.
LSZH Options: Many rubber compounds are naturally Low Smoke Zero Halogen. This is critical for tunnels, hospitals, and high-rise buildings where smoke inhalation is a bigger threat than the fire itself.
Integrity: In a fire, a Flame retardant rubber jacket forms a char layer. This char can provide a few extra minutes of electrical insulation, allowing emergency systems to continue functioning during an evacuation.
The structure of the cable—how many wires are inside—often dictates the material choice. For simple power delivery, a 3 core setup is standard.

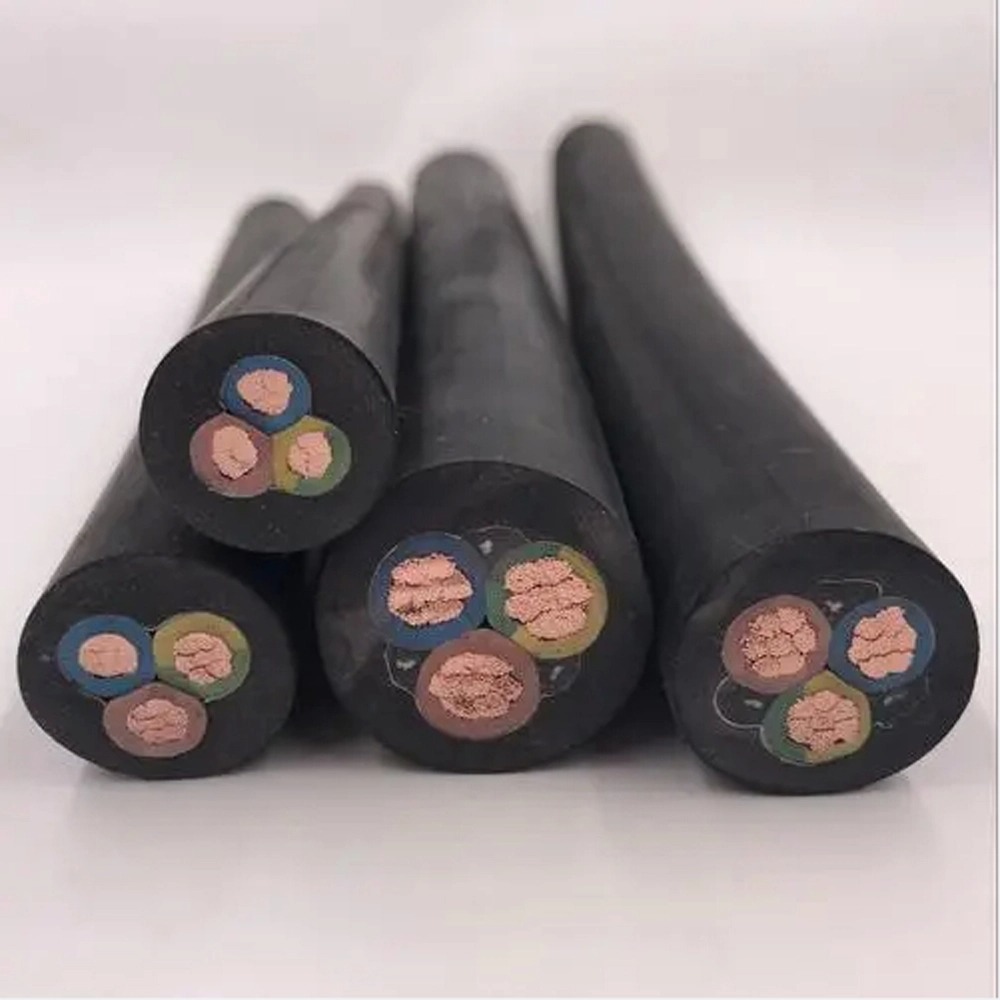

A 3 core Rubber Cable typically includes a Phase, Neutral, and Earth (Ground) wire. In a rubber format, these are often used for:
Extension Leads: For high-end power tools.
Outdoor Lighting: Where the cable might be buried or exposed to rain.
Kitchen Appliances: Where heat from ovens or stoves is present.

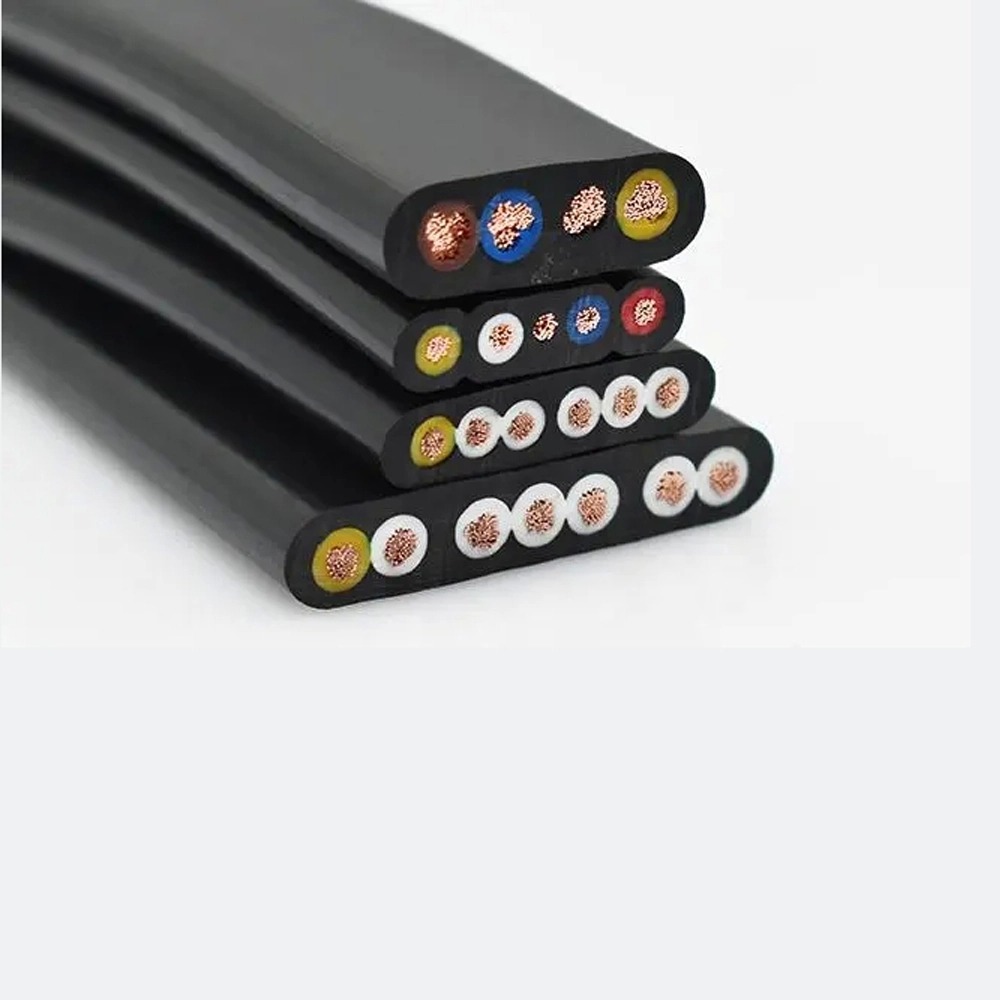

In complex industrial control systems, a Multicore Rubber Cable might carry 7, 12, or even 24 cores. Because rubber is so flexible, these thick bundles remain manageable for installers. They can be pulled through tight conduits or wrapped around cable drums without the outer sheath "zippering" or tearing.
It is no secret that a Rubber Cable costs more than a plastic one. The raw materials are more expensive, and the vulcanization process takes more energy. So, when is the extra cost justified?
If you use PVC for a Heavy duty outdoor application, you might replace it every 2 years due to UV cracking or mechanical wear. If an industrial rubber alternative lasts 10 years, it is significantly cheaper in the long run.
Reduced Downtime: In a factory, a cable failure can cost thousands of dollars per hour. Rubber's reliability pays for itself.
Maintenance: Rubber requires less frequent inspection for cracks.
Compliance: Certain maritime and mining regulations mandate rubber because of its superior safety profile.
These sites are the ultimate test. Cables are dragged over sharp rocks and soaked in mud. Only a Heavy duty Rubber Cable can survive the shear forces found in mining tunnels or high-rise construction sites.
Ever notice the thick black cables at a concert? They are almost always rubber. They need to be stepped on by crowds, coiled up every night, and endure the heat of stage lights. Their Flame retardant and flexible nature makes them the only choice for the "roadie" lifestyle.
The debate of Plastic vs. Rubber isn't about which is "better" in a vacuum. It is about the environment. Plastic is the king of the static, indoor, budget-conscious world. However, if your needs involve Heavy duty usage, High temperature silicone requirements, or a Waterproof industrial environment, the Rubber Cable is the undisputed champion. It offers a level of resilience, safety, and flexibility that thermoplastics simply cannot match.
Q: Can I use a Rubber Cable for permanent home wiring?A: You can, but it is usually overkill and more expensive. PVC is perfectly fine for static walls. However, for outdoor garden power or garage workshops, rubber is a great upgrade.
Q: Is every Rubber Cable flame retardant?A: Not necessarily. While rubber has better heat resistance, you should specifically look for the Flame retardant rating (like IEC 60332-1) if fire safety is a primary concern.
Q: Why is my Rubber Cable turning white?A: This is often "blooming," where some of the wax or antioxidants in the rubber migrate to the surface. It usually doesn't affect the electrical performance but shows it is a genuine rubber compound.
